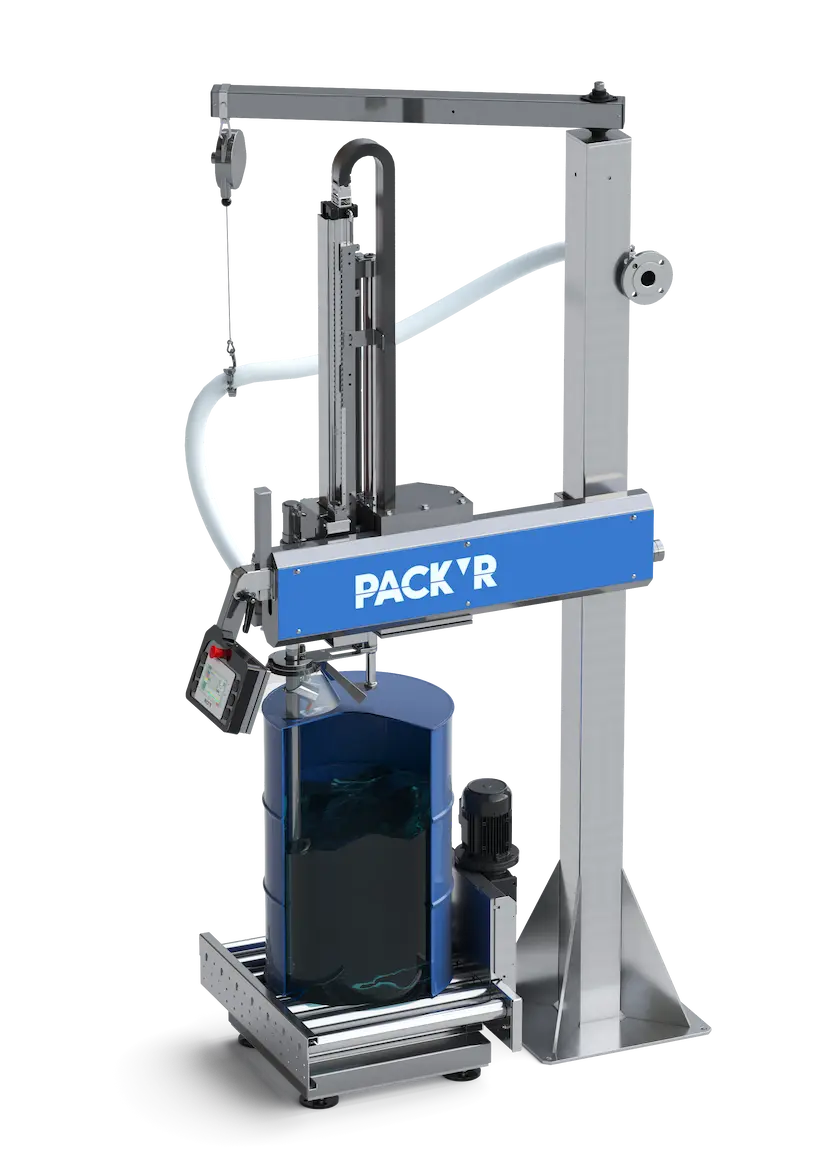

FLEXEO-D
Semi-Automatic Drum Filling Machine

This semi-automatic drum filler ensures consistent net-weight dosing while reducing product loss and maximizing operator productivity.

Description:

The FLEXEO-D is part of our semi-automatic filling machines for liquid products. Many types of products are compatible with this filling machine (they can be foamy, viscous or pasty) and different drum sizes from 5 gallons up to 55 gallons can be accommodated.  Filling accuracy is performed by a weighing scale (control, self-correction and statistics).

This machine is using a diving lance with programmable positioning adapted to the product characteristics (sub-surface filling for foamy product for example).

The product can be fed by a pump or compressed air. Choose the FLEXEO-D semi-automatic drum filling machine to improve your filling accuracy, production flexibility, and overall operational efficiency.

Download the FLEXEO-D Brochure

Contact Us
semi-automatic drum filling machine

Key Points

Drum
  • Up to 120 CPH
  • Net-weight filling technology
  • Minimum product give-away
  • Easy operations
  • Flexible solution
  • Easy and quick lance changeover

FLEXEO-D Filling and Capping Machine Key Benefits

FLEXEO-D our semi-automatic drum filling machine for liquid products
  • Ergonomic and compact design (HMI on filler arm)
  • Net-weight filling technology for minimum product give-away with very high accuracy
  • Intuitive interface with programmable recipes
  • Adjustable height to allow multi-format
  • Several filling lances according to the viscosity (viscous, foamy, corrosive)
  • Several filling positions: sub-surface, above product, below bung-hole)

See the FLEXEO-D in Action

Video Thumbnail

Flexeo-D Technical Specifications

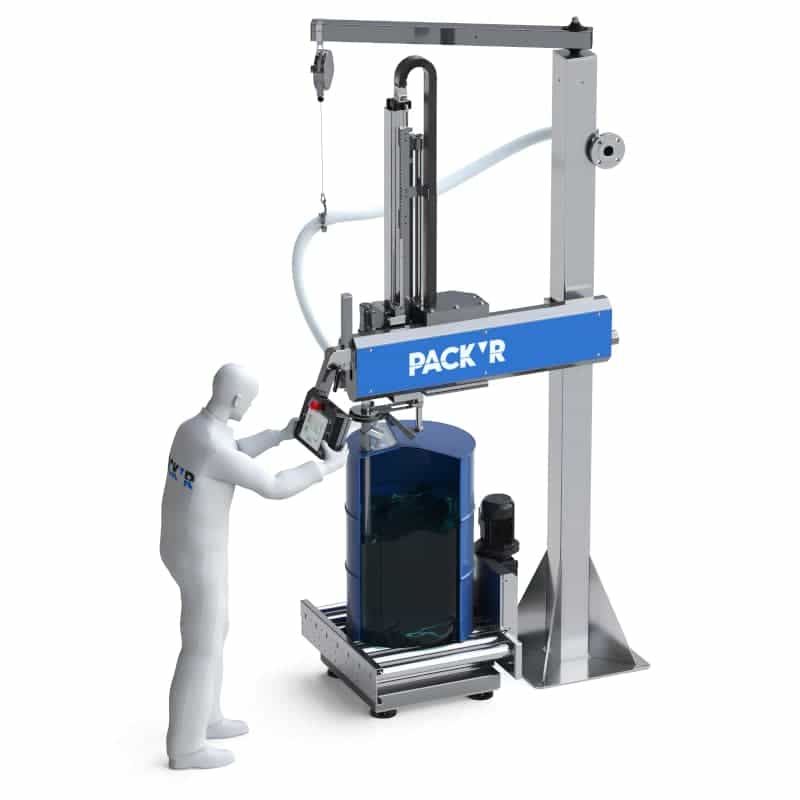

Semi Automatic Drum Filling Machine with operator
FLEXEO-P

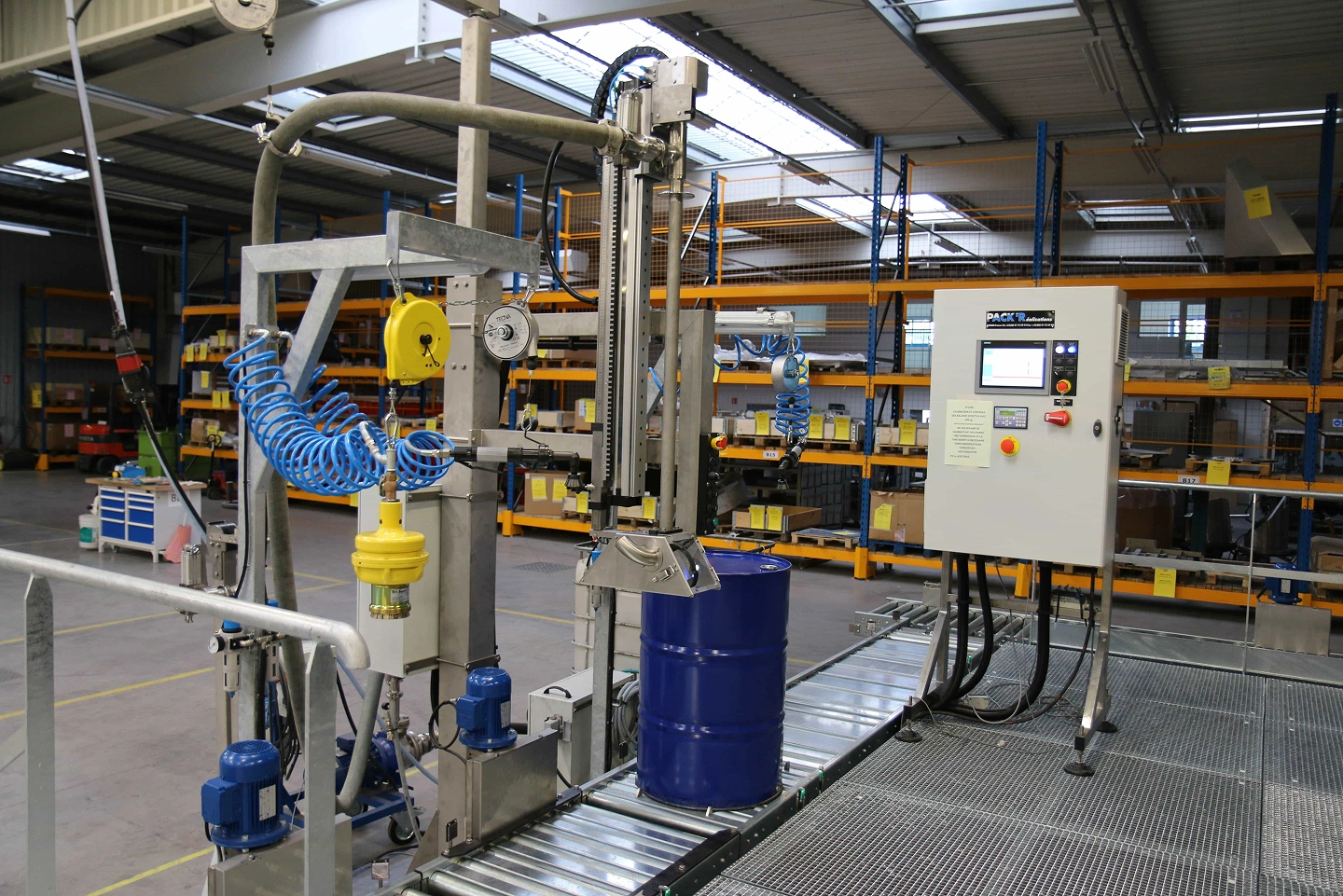

FLEXEO-D our semi-automatic drum filling machine for liquid products
Semi Automatic Drum Filling Machine with operator
FLEXEO-P
FLEXEO-D our semi-automatic drum filling machine for liquid products

Container: Drum

Norm: ExProof, ATEX, IECEx, UL and EC design

Capacity: 5 to 55 Gallons



Output & Capacity

  • 5 gallons: 120 drums per hour
  • 55 gallons: 40 drums per hour



  • Net-weight filling technology
  • HMI on filler arm
  • Intuitive interface with programmable recipes
  • Adjustable height to allow multi-format
  • Various materials available, stainless steel or plastic (for corrosive application)
  • Fume exhaust system
  • Nitrogen purging
  • Lance cleaning station
  • Motorized or gravity roller conveyors for drum transfer
  • Leak collector with or without level detection under the scale
  • Tab sealing and bunging

Additional Line Equipment

Depalletizer for drum
Automatic Drum Depalletizer

Compact and fully automatic depalletizer

Drum
high speed drum palletizer
Automatic Drum Palletizer

Compact and fully automatic drum depalletizer

Output:Up to 120 CPH

Drum

In the Same Range

FLEXEO-P semi-automatic Tote, IBC and Pallet drums filler capper
FLEXEO-P

Semi-automatic Filling Machine for Totes and Pallet Drums
Output: Up to 40 CPH

Drum
Tote/IBC
Automatic Drum Filling Machine
PULSA-D

Automatic drum-by-drum filling machine
Output: Up to 120 CPH

Drum
INLEO-P

Fully automatic pallet drums and totes filler
Output: Up to 40 CPH

Drum
Tote/IBC

Liquid Filling Solutions For Every Application

Get in touch today to start optimizing your production line.

Banner Contact Form

"*" indicates required fields

Name*
PACK'R Machines working with bottles

Explosion-Proof Expertise

Over the years, PACK’R has manufactured numerous machines and has developed a real expertise in Explosion proof design, in particular to meet the problems of our customers’ markets and products: solvents, flammable petroleum products, hazardous products, solvent-based paints, beverage concentrates, etc. We design and manufacture simple semi-automatic machines for hazardous production sites as well as automatic filling and capping machines, up to the complete line in ExProof, ATEX and IECEx design.

PACK’R Your Partner in Filling Innovation

With over 35 years of expertise and more than 1,450 filling and capping machines installed globally, PACK’R is your trusted partner. Our team supports you from engineering to commissioning, ensuring your operations benefit from durable, precise, and regulatory-compliant filling machines.
