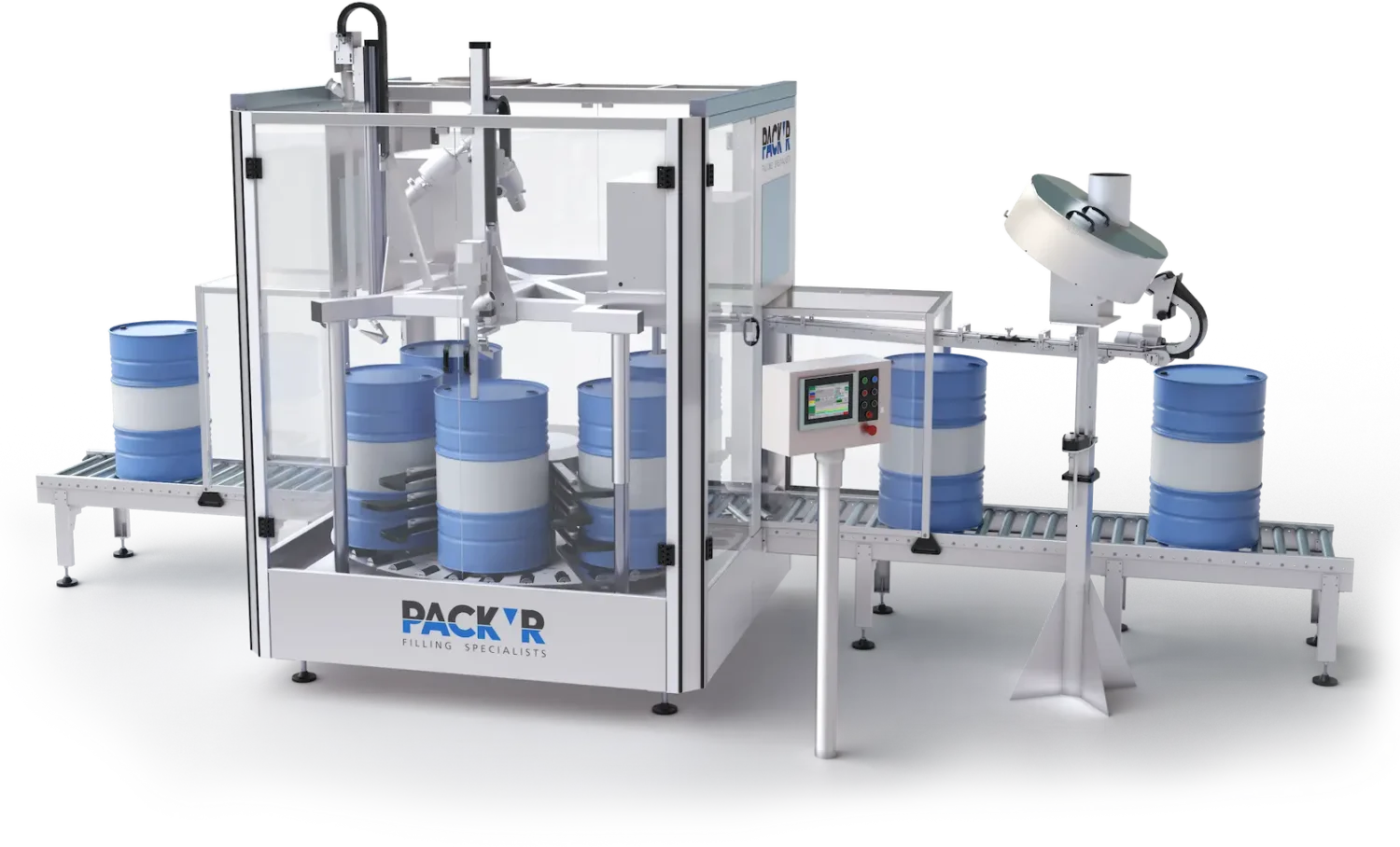

PULSA-D

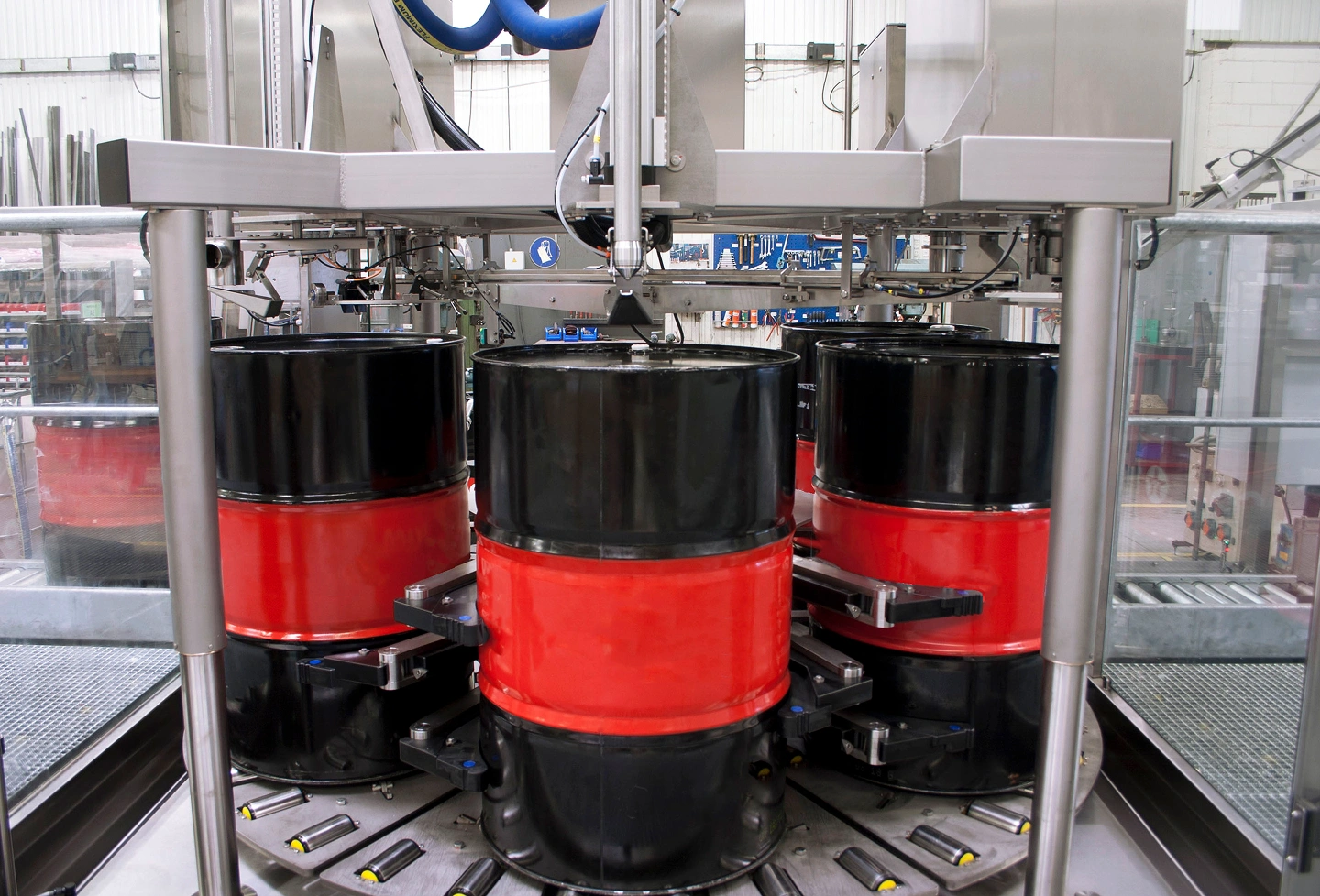

Automatic Drum Filling Machine

The PULSA-D is an automatic drum filling machine, designed for high-precision filling of complex liquids (foamy, viscous, or corrosive).

Description:

The PULSA-D is a high-performance drum-by-drum filling and capping machine designed for precise filling of liquid products into drums ranging from 16 to 55 gallons.

Engineered for versatility, it handles a wide range of liquid types (including foamy, viscous, or pasty products) thanks to its programmable diving lance. This improves filling performance for sensitive liquids while minimizing splashing, aeration, and product loss. The PULSA-D also delivers exceptional accuracy, thanks to its integrated weighing scale with real-time control, self-correction, and statistics. These fully automatic drum filling machines also offer greater throughput compared to semi-automatic machinery. There’s no need for human intervention at any stage of the process, meaning an overall boost in efficiency and production capacity.

The modular station layout allows easy customization for filling, capping, tab seal application, and inspection processes, while the programmable diving lance ensures optimal filling, even for sensitive products. This automatic drum filling machine has also a compact footprint.

Download the PULSA-D Brochure

Common Challenges in High-Speed Drum Filling

Manufacturers who need high-speed drum filling for liquid products face a number of issues. For example, it can be difficult to ensure accurate filling at higher speeds. Certain liquids also may foam or have higher viscosity that can make them more difficult to handle. Filling drums too quickly also can lead to spills that mean wasted product and could impact worker safety in the facility. These are all problems that the PULSA-D automatic liquid filling machine resolves for manufacturers. Through precision automation, this equipment ensures safe, reliable filling for a wide range of liquid types.

Key Points

UP TO 120 CPH
Net-weight filling technology
Minimum product give-away with very high accuracy
Fast format changeover
ExProof, ATEX, IECEx, UL and EC design
Modular layout
Easy customization with operations other than dosing

How Net-Weight Filling Improves Accuracy

The PULSA-D features an integrated weighing scale, real-time controls, and self-correction capabilities. This means every drum is filled to precise weight, which ensures greater accuracy than filling to a certain level inside the drum. Certain liquids may foam or settle after filling, which means filling to a set level may result in inconsistencies across production runs. Net-weight filling solves this concern by ensuring each drum is filled with the same amount of product.

Fully Automated Drum Filling and Capping Process

The automated capabilities of the PULSA-D mean manufacturers can experience a significant reduction of manual labor as well as higher throughput. It can delivers fully automatic filling operations including:

Drum orientation
Debunging

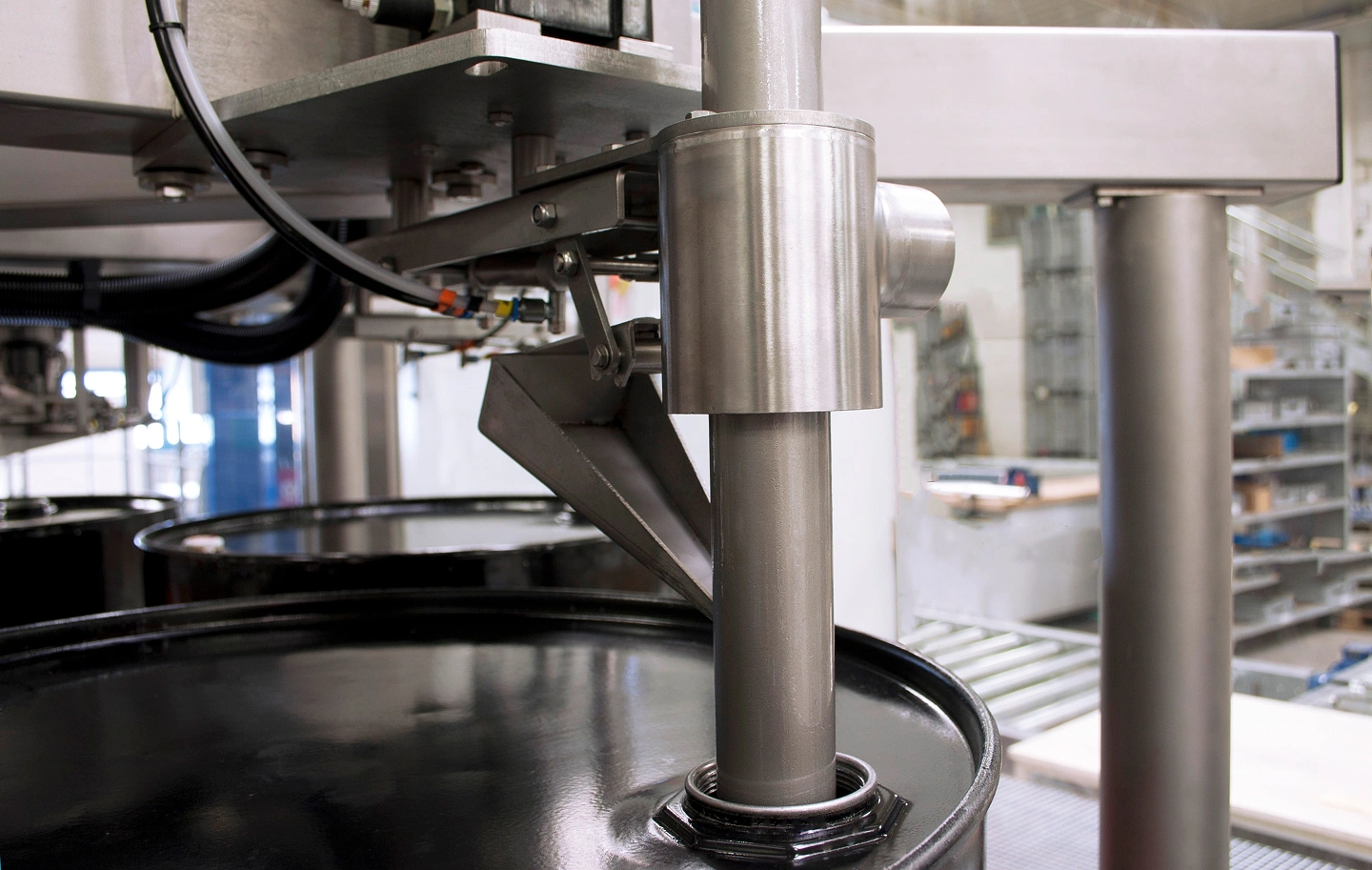

Filling

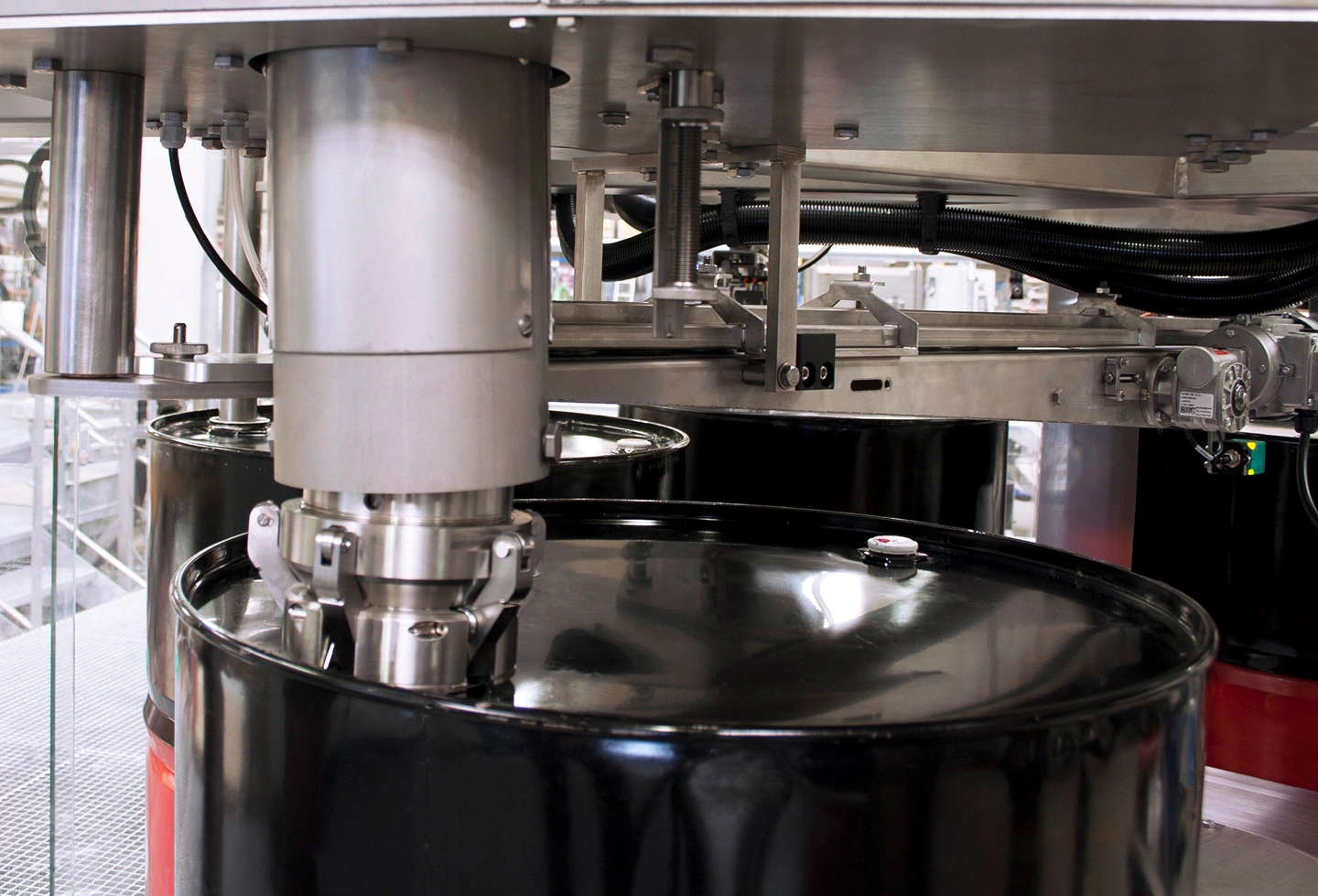

Bunging
Crimping
Inspection
Transfer between stations

PULSA-D Key Benefits

Automatic filling system: no human intervention
Precise positioning of drums during transfers from station to station (held in place by grippers)
Quick return on investment: no giveaway, high production capacity
Compact design
Modular layout

Thanks to the modular design of the PULSA-D and our entire range of filling and packaging equipment, it’s easy for manufacturers and packagers to customize the setup to fit their exact workflows. Adding filling stations, inspection stations, tab seal application, nitrogen purging, and/or other custom operations is relatively simple and doesn’t require the extensive modifications to machinery that may be required in other systems.

See the PULSA-D in Action

PULSA-D Technical Specification

Containers: Drum

Containers size: 5 to 55 Gallons

Norm: ExProof, ATEX, IECEx, UL and EC design

Output & Capacity

From 16 to 55 gallons: up to 120 CPH

Net-weight filling technology
Operations are done step-by-step on different stations inside the machine
Orientation of the drum and debunging automatically
Filling on 3 stations maximum depending on the machine configuration
Bunging and crimping
Various materials available, stainless steel or plastic (for corrosive application)
Machine in closed cabinet with fume exhaust system to meet high level security requirements
Nitrogen purging
Lance cleaning station
Conveyor with container detection
New Web HMI: user friendly interface, programmable recipes, maintenance indicators, traceabilit

Additional Line Equipment

PACK’R offers modular filling and packaging solutions that can be integrated together to form a comprehensive line. These technologies mesh together easily to support high-speed, high-throughput production that enhances efficiency and productivity. See some of our complementary options in the links below:

High Capacity empty drum automated storage system

Automated Drum Storage System

Warehouse system designed for the accumulation and automatic feeding of empty drums

Automatic Drum Depalletizer

Compact and fully automatic depalletizer

Automatic Drum Palletizer

Compact and fully automatic drum depalletizer
Output: Up to 120 CPH

In the Same Range

FLEXEO-D

Semi-automatic Filling Machine for Drums
Output: Up to 120 CPH

FLEXEO-P

Semi-automatic Filling Machine for Totes and Pallet Drums
Output: Up to 40 CPH

INLEO-P

Fully automatic pallet drums and totes filler
Output: Up to 40 CPH

Why Choose the PULSA-D?

This machine was built leveraging PACK’R’s decades of filling experience, global installation base, and engineering support. It delivers advantages including:

Fully automated operation
Compact footprint
Fast changeovers
Minimal giveaway
High throughput

Connect with PACK’R Today

To learn more about what the PULSA-D or any of our other solutions can do for your operations, take the next step and get in touch with us today. Our experts are ready and willing to answer all your questions about this drum filling system.

Banner Contact Form

"*" indicates required fields

Name*

Company Name*

City* Country*

Email*

Phone*

Industry*

Message*

CAPTCHA

Patented Technologies

The PULSA-D filling machine can be configured to integrate PACK’R’s patented technologies in order to deliver both flexibility and efficiency:

CLICK & PLAY technology for fast and tool-free format changes
CIP or COP for efficient cleaning of filling lances

Available in stainless steel or corrosion-resistant plastic, including ExProof design versions for hazardous environments, it’s the ideal solution for reliable, high-accuracy drum filling at speeds of up to 120 containers per hour.

Use our product for more accurate filling processes, boosting efficiency and curbing unnecessary waste. For more information, contact us today.

Explosion proof expertise

Over the years, PACK’R has manufactured numerous machines and has developed a real expertise in Explosion proof design, in particular to meet the problems of our customers’ markets and products: solvents, flammable petroleum products, hazardous products, solvent-based paints, beverage concentrates, etc. We design and manufacture simple semi-automatic machines for hazardous production sites as well as automatic filling and capping machines, up to the complete line in ExProof, ATEX and IECEx design. Our adherence to these standards for explosion-proof operation means the PULSA-D is ideal for filling potentially hazardous liquids.

PACK’R Your Partner in Filling Innovation

With over 35 years of expertise and more than 1,400 filling and capping machines installed globally, PACK’R is your trusted partner. Our team supports you from engineering to commissioning, ensuring your operations benefit from durable, precise, and regulatory-compliant filling machines.
