FLEXEO-P

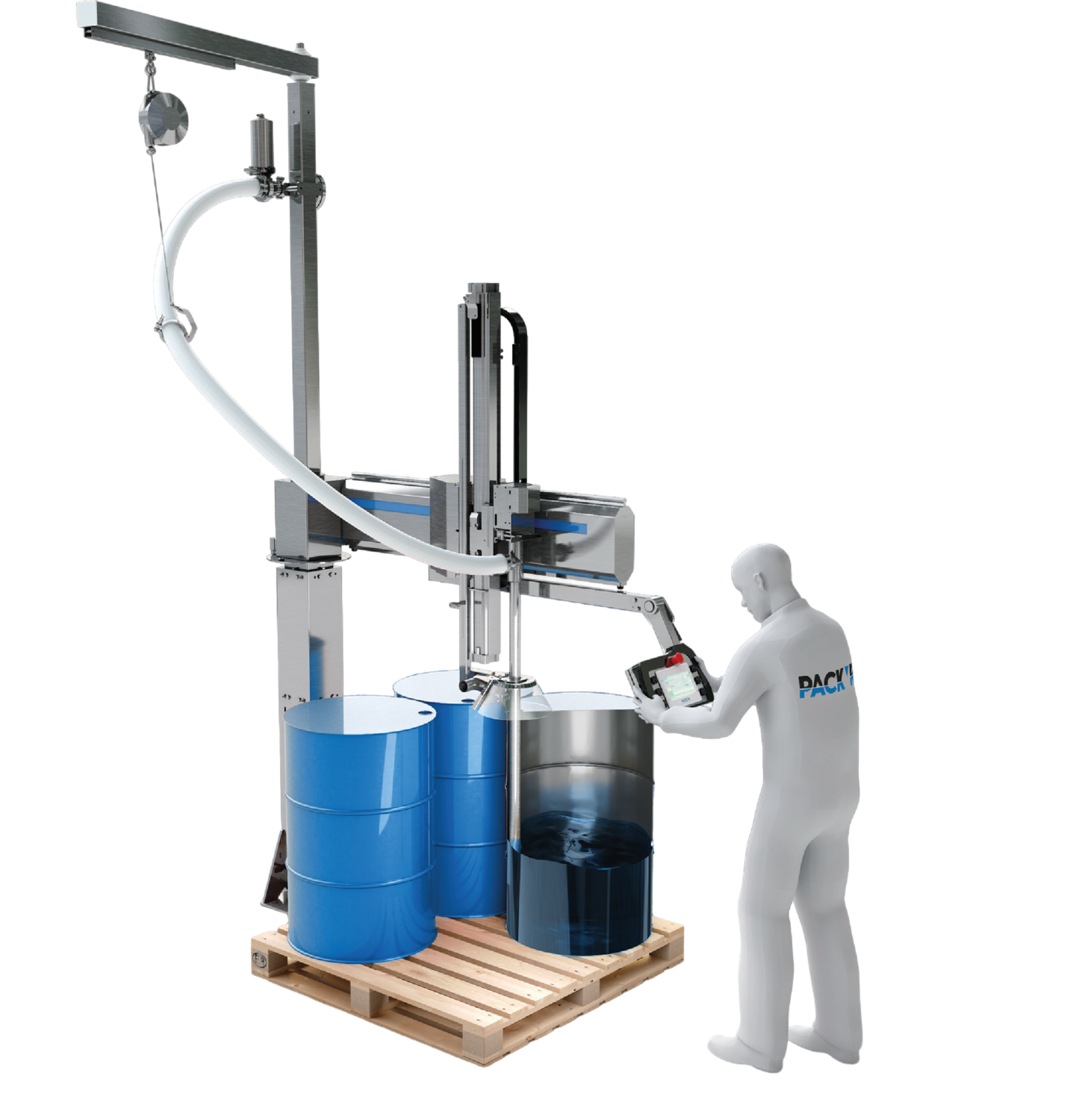

Semi-Automatic Tote Filling Machine

Our flexible pallet drum and semi-automatic tote filling machine is ideal for small batchs.

Description:

Our FLEXEO-P semi-automatic filler for pallet drums and totes  is able to fill a wide range of drums on pallets from 5 to 55 Gallons as well as different IBC Totes (up to 330 gallons).

Assembled in our factory in Atlanta, these machines can be offered as a standalone unit, with conveyors, or in a movable base. Typical output rate is 40 drums or 10/12 IBC totes per hour.

Download the FLEXEO-P Brochure

Contact Us

Key Points

Drum
Tote/IBC
  • UP TO 40 CPH
  • Net-weight filling technology
  • ExProof, ATEX, IECEx, UL and EC design
  • Different metal and plastic bung and tab seal

FLEXEO-P Key Benefits

FLEXEO-P
  • Machine assembled in the USA
  • Best dosing accuracy with our net weight filling technology, preventing overfilling and optimizing product usage

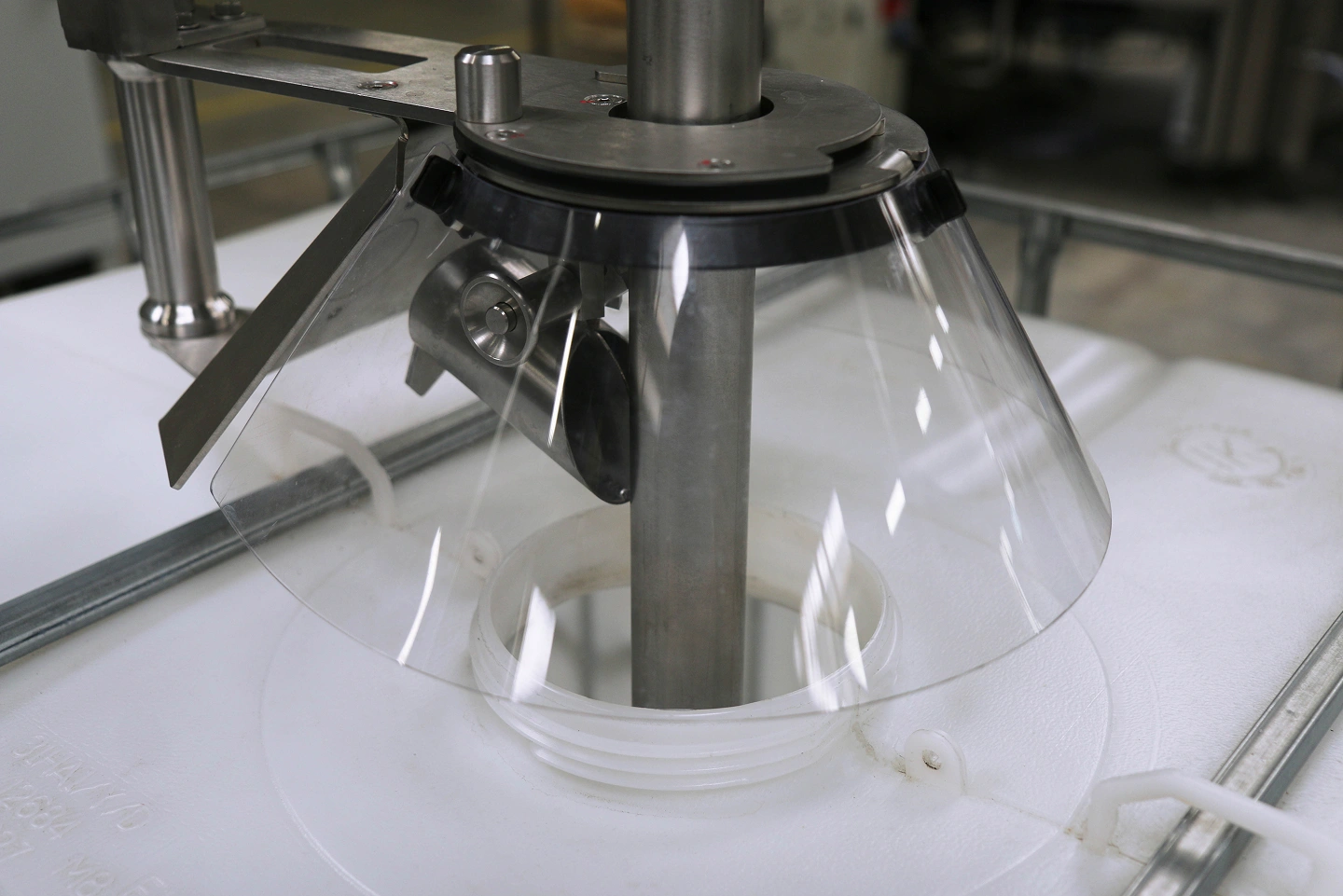

  • Clean Packaging: Includes key elements like a drip cup and various cleaning solutions to ensure thorough cleanliness.

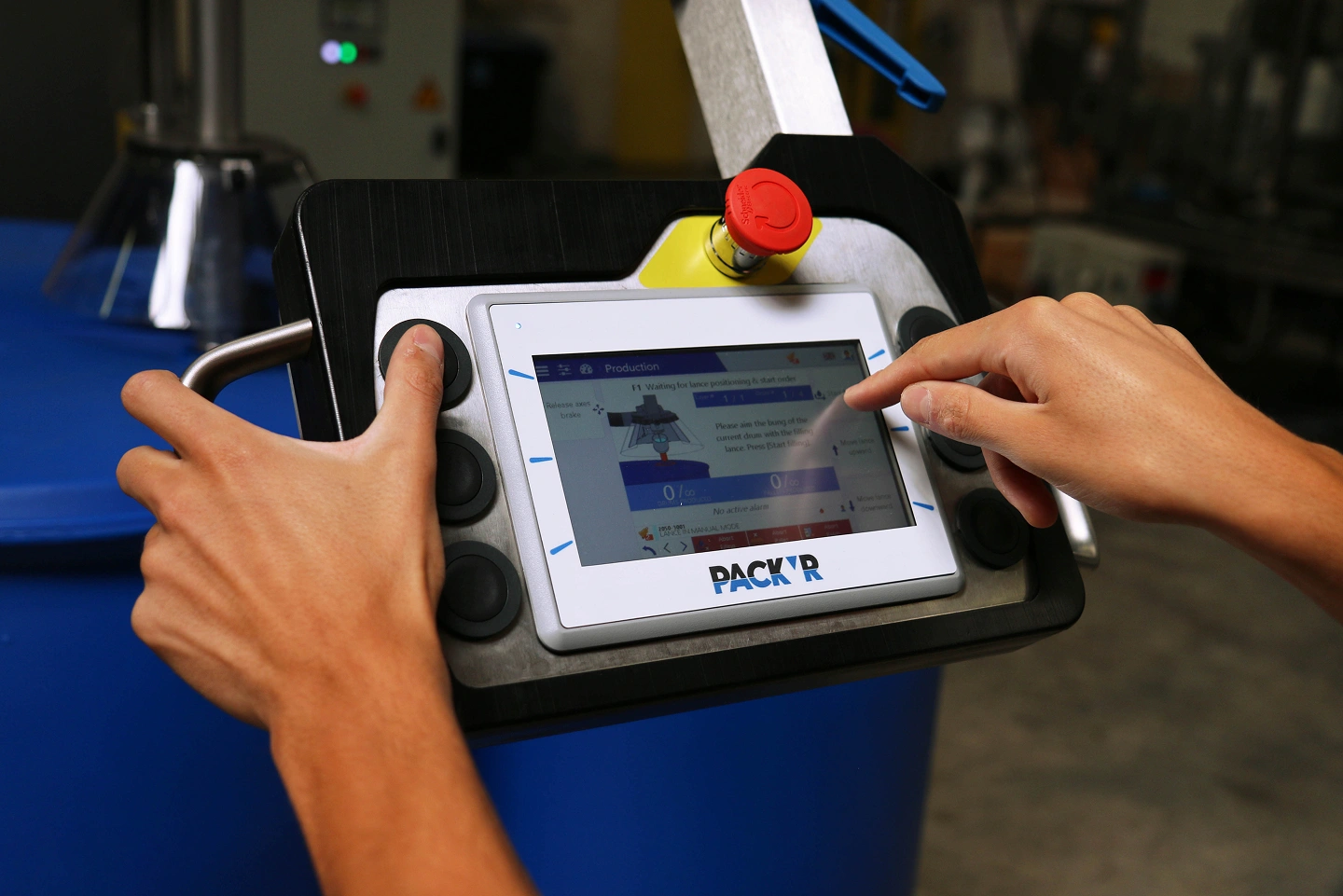

  • Intuitive touchscreen interface for easy recipe programming

See the FLEXEO-P in Action

Video Thumbnail

Technical Specifications

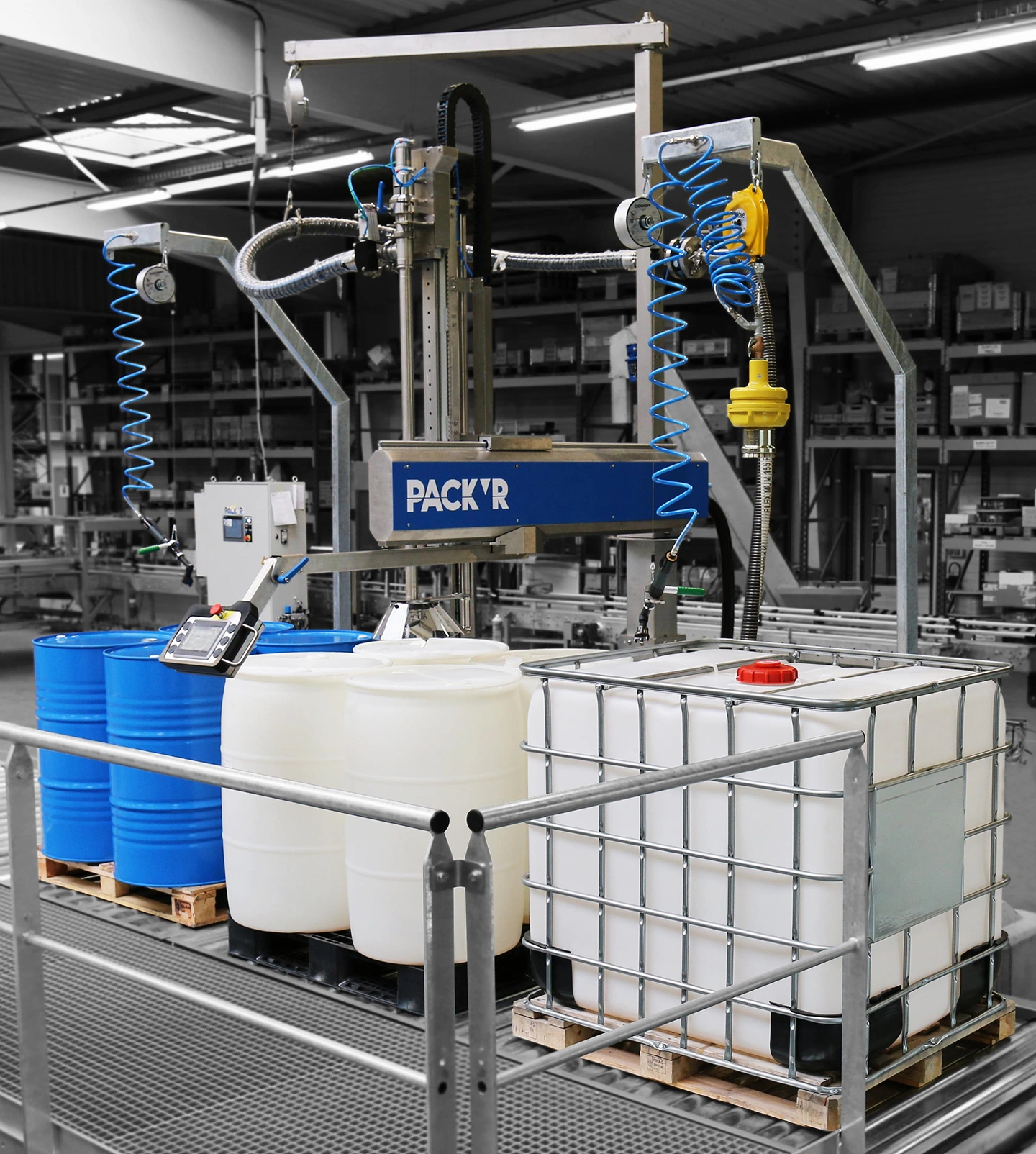

FLEXEO-P semi-automatic Tote, IBC and Pallet drums filler capper
FLEXEO-P
FLEXEO-P
FLEXEO-P
FLEXEO-P
FLEXEO-P semi-automatic Tote, IBC and Pallet drums filler capper
FLEXEO-P
FLEXEO-P
FLEXEO-P
FLEXEO-P

Containers: Drum on pallet and IBC

Capacity: From 55 – 330 GAL

Output:

  • 55 gallons: 40 drums per hour
  • IBCs from 275 to 330 gallons: 12 CPH



  • Instantaneous flow up to 15 lbs / second
  • Intuitive touchscreen interface
  • Motorized conveyors for pallet transportation
  • Machine in a transport base making it easy to move around the workshop

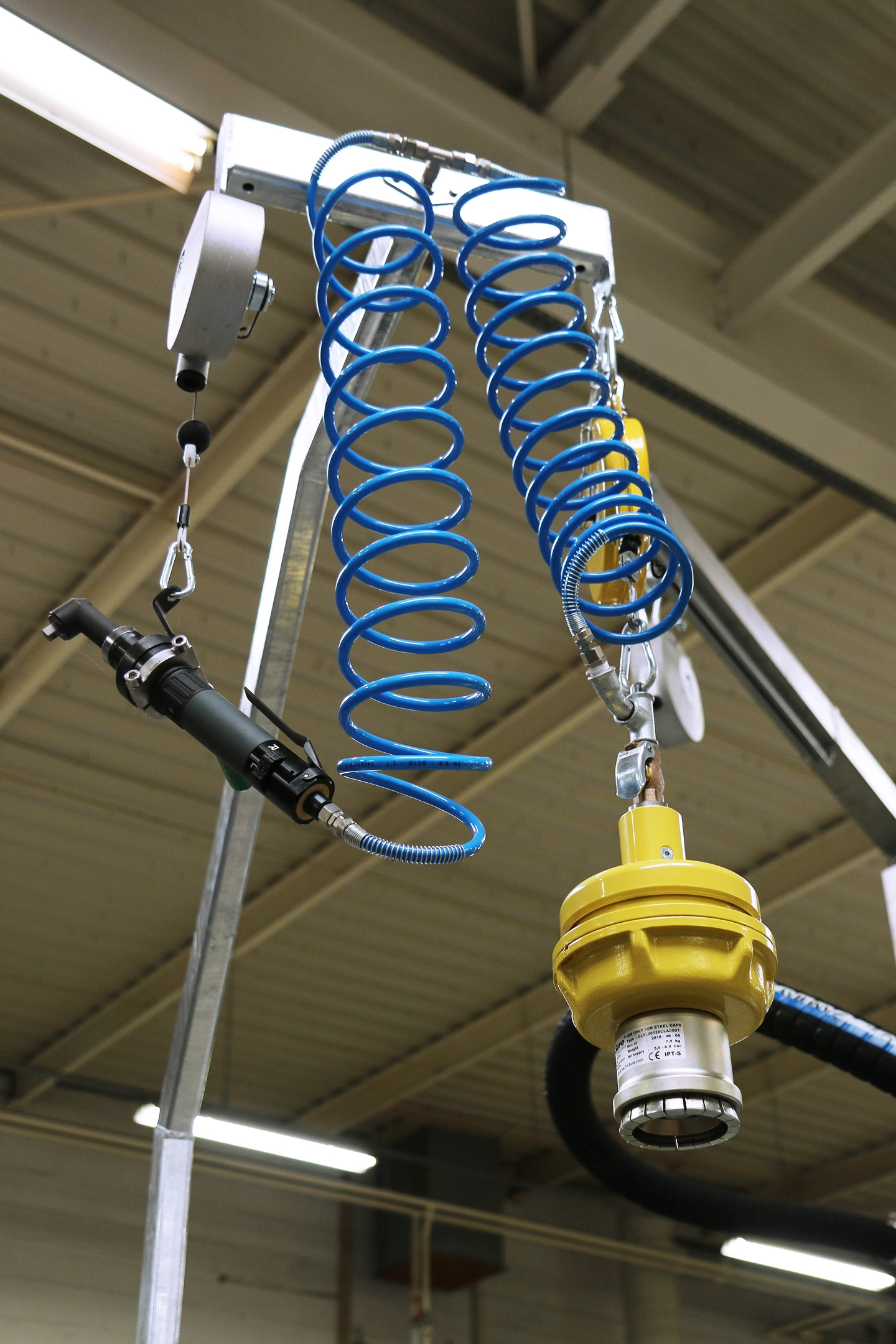

  • Uncapping/capping tools to open and close containers
  • Cleaning Collector for quick and easy Clean-In-Place
  • ExProof Design, for use in a potentially explosive atmosphere, Class 1, Division 1 and & Division 2.
  • UL compliance and certification
  • Additional filling line to prevent product cross contamination
  • Nitrogen purge function, allowing a nitrogenization of the containers before, during, and/or after the filling





Liquid Filling Solutions For Every Application

Get in touch today to start optimizing your production line.

Banner Contact Form

"*" indicates required fields

Name*
PACK'R Machines working with bottles

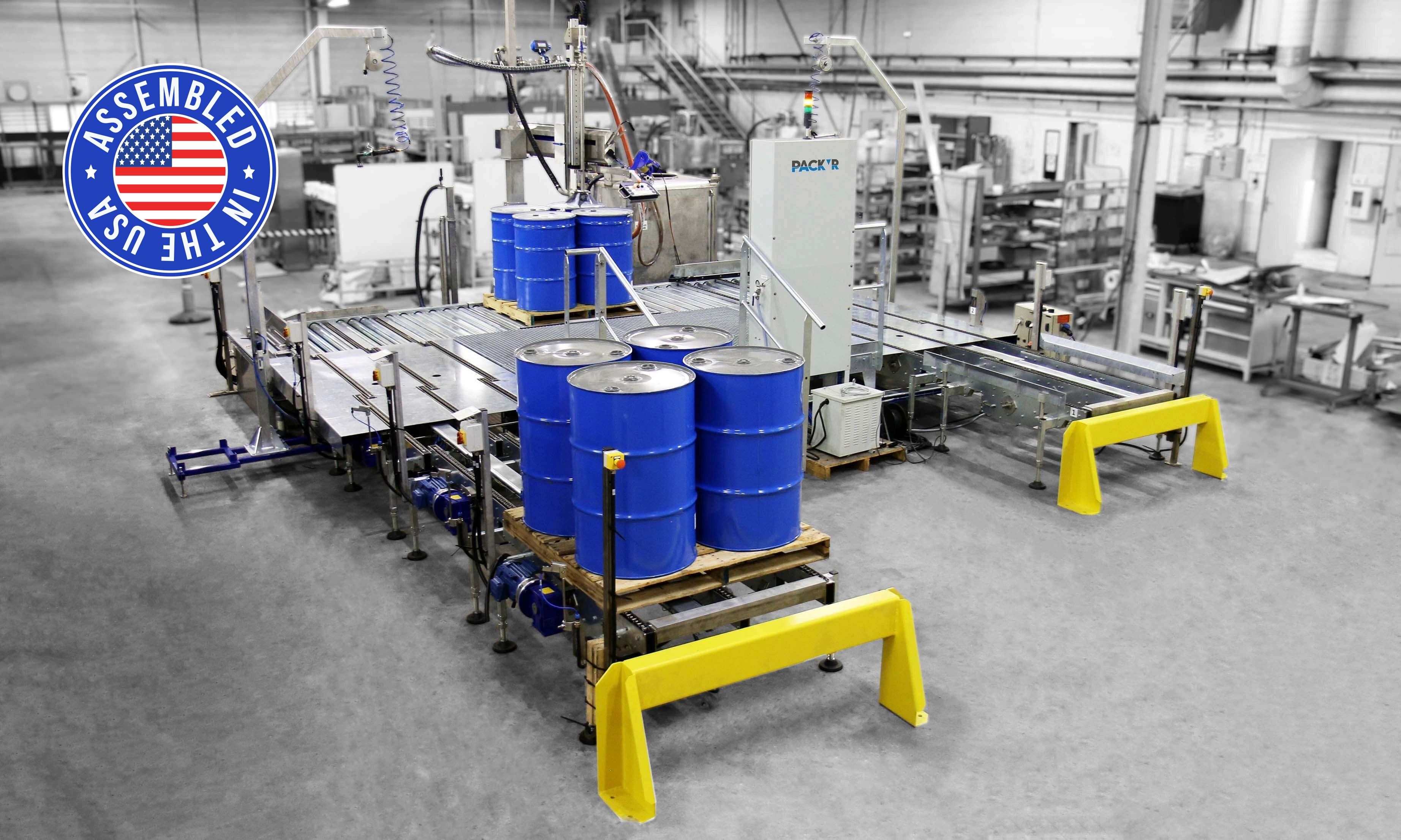

FLEXEO-P with conveyors

The FLEXEO-P with motorized conveyors brings more autonomy to the production by allowing more pallet to be accumulated at the infeed and/or the outfeed of the conveyor. Linked with manual debunging tool/bunging tool at the infeed and outfeed of the filler, the FLEXEO-P with motorized conveyor can increased productivity with filling up to 40 drums per hour. The FLEXEO-P with motorized conveyor is compatible with Explosion Proof requirements. The motorized conveyor allows to link the FLEXEO-P with other line elements such as labelers, palletizers, stretch wrapper.

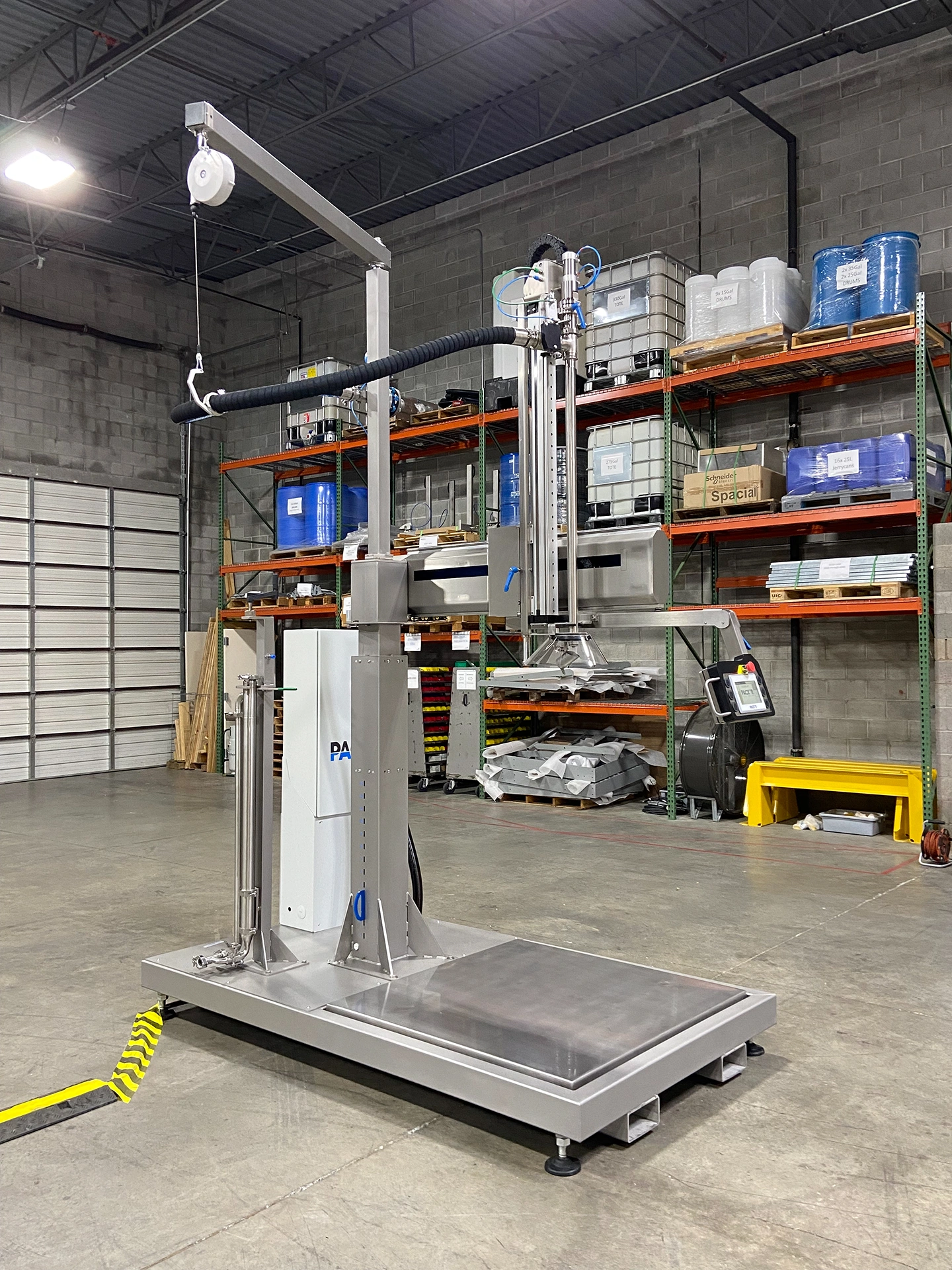

FLEXEO-P with transport base

With its transportation base, the FLEXEO-P can be moved with a fork-truck on several dedicated filling stations. The FLEXEO-P with transport base can fill a pallet of containers from 5 gallons up to 330 gallons IBC totes. Particularly adequate for packaging small to medium batches out of several tanks, the FLEXEO-P can also be used small workshop thanks to its compacity. Most FLEXEO-P options are compatible with the transport base.

Explosion proof expertise

Over the years, PACK’R has manufactured numerous machines and has developed a real expertise in Explosion proof design, in particular to meet the problems of our customers’ markets and products: solvents, flammable petroleum products, hazardous products, solvent-based paints, beverage concentrates, etc. We design and manufacture simple semi-automatic machines for hazardous production sites as well as automatic filling and capping machines, up to the complete line in ExProof, ATEX and IECEx design.
