PULSA-B
Automatic Pail Filling System

A step-by-step and automatic pail filling system for complex liquid with high and productivity.

Description:

The PULSA-B is an automatic indexing filling and lidding machine which means that the containers are introduced in a starwheel and the operations are made step-by-step on different stations (tare weighing, filling, lidding).

The machine configuration is very flexible to adapt different applications, while being very compact. This automatic pail filling machine is designed to cope with multiple formats and containers with very low changeover timings.

The product can be fed by gravity or by the use of a pump.

Download the PULSA-S Brochure

Contact Us

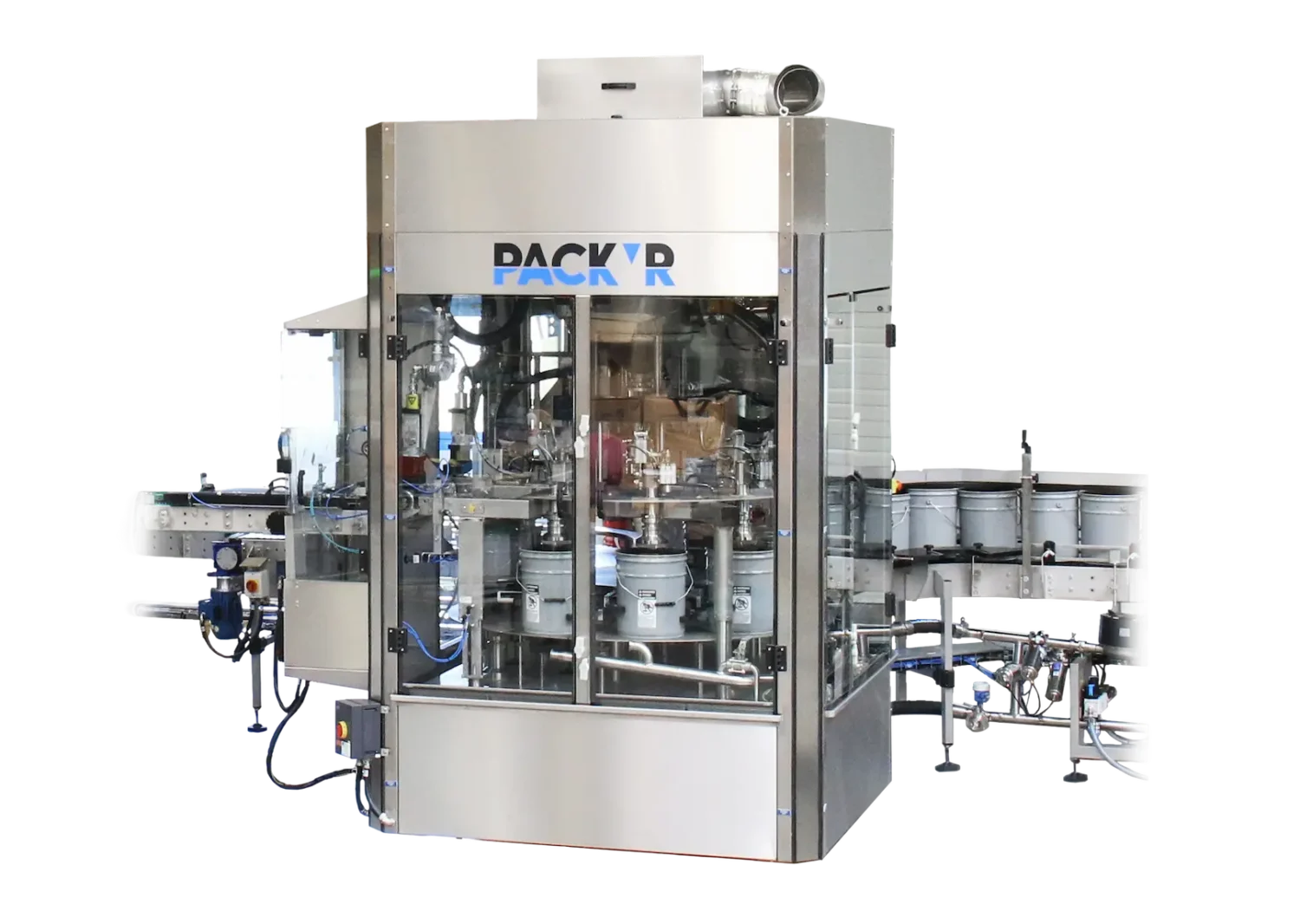

PULSA-B - Automatic pail filling system

Key Points

Pails
  • UP TO 1,080 CPH
  • Net-weight filling technology
  • ExProof, ATEX, IECEx, UL design
  • Small footprint
  • Several layout configurations
  • High efficiency CIP

PULSA-B Key Benefits

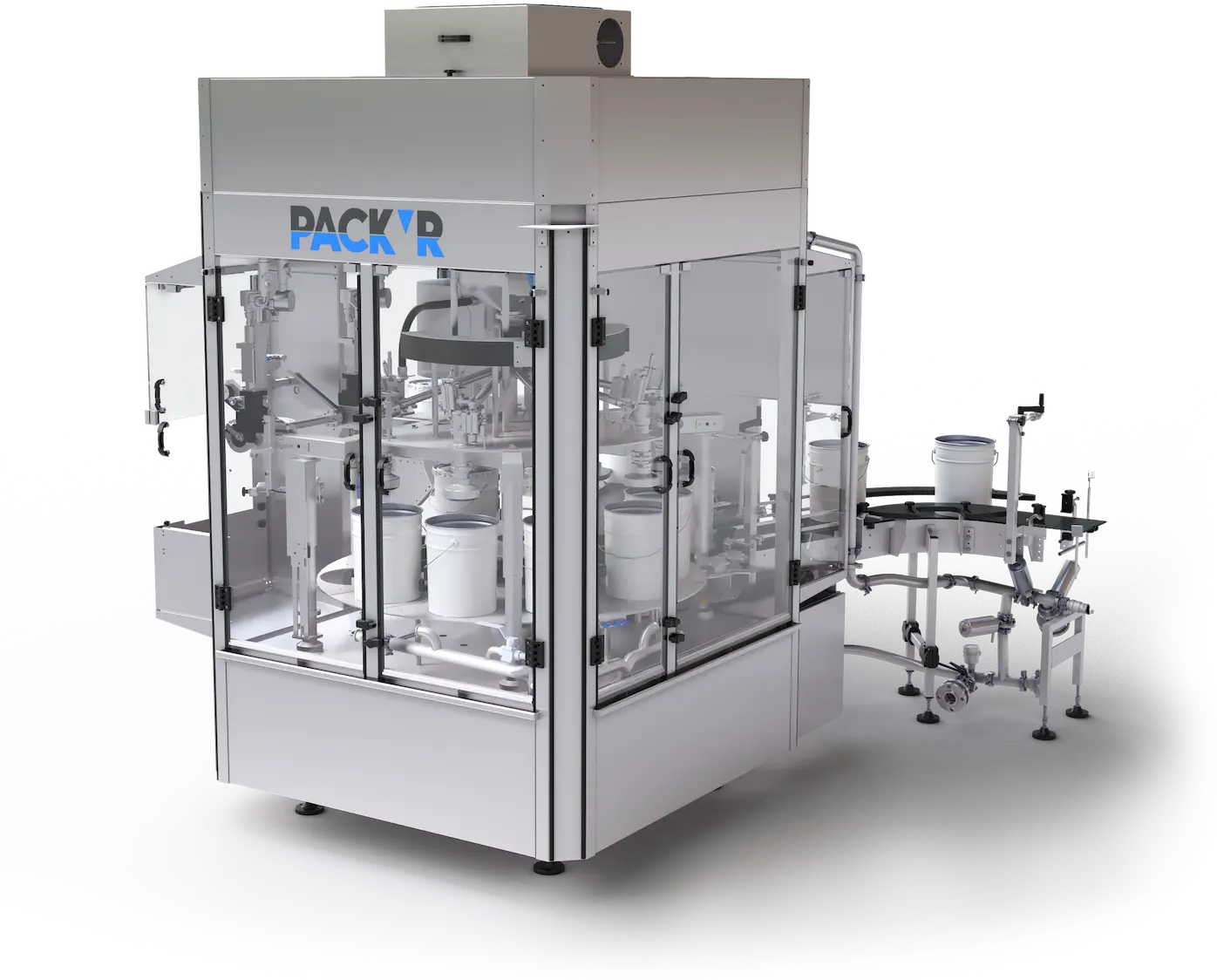

PULSA-B - Automatic pail filling machine
  • Engineered for medium-speed production lines
  • The highest accuracy with our net-weight dosing technology
  • Product savings due to no overfilling
  • High efficiency CIP
  • Fast changeovers

See the PULSA-B in Action

Video Thumbnail

PULSA-B Technical Specification

Containers: Pail and Can

Capacity: 3.5 oz – 5 GAL

Norm: ExProof, ATEX, IECEx, UL and EC design

Output & Capacity

  • 1 quart : up to 1080 CPH
  • 1 Gallon: up to 960 CPH
  • 2.5 Gallons: up to 840 CPH
  • 5 Gallons: up to 600 CPH



  • Net-weight filling technology
  • Filling and lidding stations
  • No drips system
  • Checking for lid presence
  • Can be offered with plastic materials
  • Pressurized tank to handle high viscous products
  • Standard and efficient Clean In Place (CIP) system
  • Automatic rejection system for faulty containers

Additional Line Equipment

automatic pail denester
Pail Denester

Efficient pail denester system, delivering continuous denesting, ergonomic handling, and perfect integration with PACK'R filling lines.

Pails
Robotic top lid denester
Top Lid Denester

High-performance lid denester
Output: Up to 5,400 Lids / hour

Pails
Image 2 Jerrycan launching table
Launching Table

Output: Up to 3,600 CPH


Bottles
Jerry Cans
Pails

In the Same Range

FLEXEO-B

Semi-Automatic Filling Machine for Pails
Output: Up to 500 CPH

Pails
REVO-B

High-speed rotary pail filler capper
Output: Up to 36,000 CPH

Pails

Liquid Filling Solutions For Every Application

Get in touch today to start optimizing your production line.

Banner Contact Form

"*" indicates required fields

Name*
PACK'R Machines working with bottles

Explosion proof expertise

Over the years, PACK’R has manufactured numerous machines and has developed a real expertise in Explosion proof design, in particular to meet the problems of our customers’ markets and products: solvents, flammable petroleum products, hazardous products, solvent-based paints, beverage concentrates, etc. We design and manufacture simple semi-automatic machines for hazardous production sites as well as automatic filling and capping machines, up to the complete line in ExProof, ATEX and IECEx design.
